The Replay Mod Documentation. The most important features and their usages are explained on this website.
A Basic Tutorial on how to use the Replay Mod. It is nevertheless recommended to read this documentation for in-depth information.
The Replay Mod requires Minecraft Forge to be installed.
For the use with the Replay Mod, we recommend using Forge Version 1.8-11.14.3.1450
,
which can be downloaded here.
Other Forge Versions might, but don't necessarily work.
If you don't know how to install Forge, follow this tutorial.
After installing Forge, simply put the downloaded ReplayMod.jar
File in the /mods
folder of your Minecraft directory.
Note: The Replay Mod is entirely client side and can not be installed on the Servers you play on.
To use the Replay Mod's Rendering Feature, you need to have FFmpeg installed.
Download the latest FFmpeg Static Build for your architecture from http://ffmpeg.zeranoe.com/builds/.
Then, extract the downloaded .7z
file in the folder you want to install FFmpeg in.
Next, download this Batch Script to quickly install FFmpeg: https://replaymod.com/files/ffmpeg-path-installer.bat
Note: If your browser warns you about the download, dismiss the message. It's a simple Batch Script which won't damage your computer.
Put the downloaded script into the folder where you extracted FFmpeg and run it by double-clicking it. If you see a success message in the console, you've successfully installed FFmpeg!
On OSX, you can install FFmpeg with Homebrew using brew install ffmpeg
.
Alternatively, you can download the lastest static build from http://ffmpeg.org and copy the ffmpeg executable to /usr/local/bin/
.
On Linux, you can install FFmpeg using your operating system's package manager, for example using apt-get install ffmpeg
or aptitude install ffmpeg
.
In General, the Replay Mod should be compatible with most Forge Mods. However, due to the way that recording works, many Mods that add new Blocks, Mobs or Game Mechanics are not supported.
Mods that simply modify the Client (like the PixelCam Mod or the
CommandGroups Mod) usually work.
The Replay Mod is compatible with Optifine 1.8.0 HD U D5
, which can be downloaded at http://optifine.net/downloads.
Other Optifine Versions for Minecraft 1.8.0 might, but don't have to be compatible as well.
Warning: If you have Optifine installed, you can not render videos from within the Replay Mod.
This might change in future Replay Mod versions.
You can use the Replay Mod together with karyonix' Shaders Mod, but rendering videos results in possible crashes and malformed videos. Therefore, you have to uninstall the Shaders Mod before rendering.
If you need help installing the Replay Mod or FFmpeg, please read this forum thread by bela333 - it covers most of the problems that users encountered so far.
Recording Replays is the core feature of the Replay Mod.
Recording a Replay is really simple: If enabled in the Replay Settings, the Mod will automatically record all of your gaming sessions.
You will be notified that the Recording started by a Chat Message. Chat Messages can be disabled in the Replay Settings.

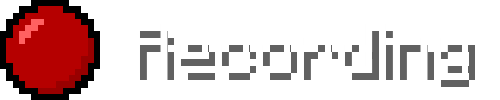

In the upper left corner, a Recording Indicator will be displayed unless disabled in the Replay Settings while you are recording.
While Recording, you can set Event Markers using the M key.
Upon exiting your Server/Singleplayer World, you might be asked to wait a couple of seconds until saving the Replay has been finished.
Congratulations, your Replay is now accessible via the Replay Viewer!
To watch one of your Replays, open up the Replay Viewer from the Main Menu and select the desired Replay. Then, press the "Load" Button.
In the Replay Viewer, you can also rename, delete and upload your Replay Files.
While in the Replay, you can freely move around using the movement keys (WASD, Space, Shift by default). You can move through blocks similar to Spectator Mode.
Using the Mouse Wheel, you can modify your flying speed. Scrolling up causes you to fly faster, while scrolling down slows you down.
While in a Replay, you can tilt the Camera.
By default, pressing J will tilt the screen clockwise,
and pressing L will tilt the screen counterclockwise.
Using K, you can reset the Camera Roll.
When holding the Ctrl key (Cmd key on Mac) while tilting, you can tilt slower and more precisely.
Note: Most of the Keybindings mentioned in this documentation can be changed in Minecraft's Control Menu.
You can spectate any living entity (including players) while in a Replay. When looking at an entity, a crosshair will be visible.
By right-clicking, you will start spectating the entity. If you want to stop spectating the entity, use your Sneak Key (Shift)
In the upper left corner of your screen, there is a Play/Pause button (Shortcut: P), using which you can entirely pause the time of the Replay.
All Entities, Particles and Block Updates will be frozen until you resume. You can fly through a paused Replay as usual.
Next to the Play/Pause Button, there is a Speed Slider. Using the Speed Slider, you can control how fast the time in your Replay passes.
The minimum Speed value is 0.1 times the normal Minecraft Tick Speed, and the maximum Speed is 8 times as fast.
To the right of the Speed Slider, there is the Replay Timeline.
On the Replay Timeline, you see a yellow cursor indicating your current position in the Replay.
By clicking somewhere on this Timeline, you will travel in time towards the specified point in time.
Please note that it takes longer to do larger steps in time or to jump backwards in time.
While in a Replay, you can create controlled Camera Movements using the Mod's Keyframe System.
Those Camera Paths can be rendered to a video later (see Rendering).
Camera Paths are inspired by the PixelCam Mod which is based on the Camera Studio Mod.
The Replay Mod Keyframe System is similar to many Video Editing Software's Keyframe Systems. If you're new to Keyframe Systems, try reading this Wikipedia article.
All of the Keyframes which define a Camera Path are placed on the Keyframe Timeline. The Keyframe Timeline is below the Replay Timeline.
The Keyframe Timeline is 10 Minutes long, meaning a Camera Path can take up to 10 Minutes. You can zoom in and out on the Keyframe Timeline using the + and - Buttons next to it.
Other than the Replay Timeline, the Keyframe Timeline's time values are not relative to the Replay's point of time, but refer to real time.
If two Keyframes are 5 seconds apart, the Camera Path will take 5 seconds to interpolate between those Keyframes.
You can drag Keyframes on the Keyframe Timeline by left-clicking them, holding the mouse button and moving your mouse.
The basic components of a Camera Path are Position Keyframes. A Position Keyframe stores a Camera Position (x, y, z, yaw, pitch, roll).
You can set a Position Keyframe using the "Add Position Keyframe" button.
A Position Keyframe initially contains the state the Camera was in when creating the Keyframe.
On the Keyframe Timeline, a Position Keyframe will appear at the cursor's current position.
This Keyframe is selected automatically, and the Position Keyframe Button will turn red. By clicking the Position Keyframe Button again, the selected Position Keyframe
will be removed.
By adding multiple Position Keyframes on the Keyframe Timeline, you can create a simple Camera Path.
Using the Path Preview, you can preview your Camera Path.
Hint: By right-clicking a Position Keyframe on the Keyframe Timeline, you can jump to this Keyframe's Position.
By default, Camera Paths follow a smooth curve through all of the set Position Keyframes. This curve is generated using
Cubic Spline Interpolation.
If you wish to disable smooth interpolation and want to make the Path follow straight lines instead, change the Path Interpolation Setting in the Replay Settings.
You can easily toggle between Linear and Cubic Interpolation using the O key.
Using the H key, you can toggle a visual representation of your Camera Path. If enabled, you will see a Red Line in the World following the Camera Path.
The Path Interpolation Setting is respected in this preview.
By moving the cursor on the Keyframe Timeline, you can see the Camera's current position and view direction on the Path Preview.
Time Keyframes can be used to precisely control time travelling during a Camera Path.
Every Time Keyframe represents a timestamp in the Replay itself.
You can set a Time Keyframe using the "Add Time Keyframe" button.
A Time Keyframe initially contains the Replay's point in time when creating the Keyframe.
When playing the Camera Path, the Replay's time will interpolate between the set Time Keyframes in the Keyframes' intervals. Two Time Keyframes with the same Timestamp will freeze the Replay time for the duration of their interval.
Hint: By right-clicking a Time Keyframe on the Keyframe Timeline, you can jump to this Keyframe's Timestamp Value.
Note: Travelling backwards in time is not supported during Camera Paths. Do not add a Time Keyframe containing an earlier point in time after another Time Keyframe.
To play your first Camera Path, click the Play Button next to the Keyframe Timeline.
By default, the Camera Path starts from the Cursor Position on the Keyframe Timeline.
By clicking while holding the Ctrl key (Cmd key on Mac), you can however start from the beginning regardless of the Cursor Position.
Using the V key, you can synchronize the Keyframe Timeline with the time that passed since the last Time Keyframe's timestamp.
This means that pressing V moves the Keyframe Timeline's cursor to the position where placing a Time Keyframe would result in a Replay Speed of the Speed Slider's current value
between the newly placed and the last Time Keyframe.
If holding Shift while synchronizing, it will be synchronized as if the Speed Slider's value was 1.0
While spectating an entity, the "Add Position Keyframe" button becomes
an "Add Spectator Keyframe" button.
To successfully spectate an entity, you always need at least two Spectator Keyframes created while spectating the same entity.
On the Keyframe Timeline, the periods during which you're spectating an entity are marked with a blue line.
To leave a spectated entity during a camera path, simply add a normal Position Keyframe.
You can edit any Keyframe by double-clicking it on the Keyframe Timeline. A new GUI Screen will open which allows you to modify the Keyframe's properties.
On the lower part of the screen, you can precisely set the Keyframe's position on the Keyframe Timeline.
Above that, you can modify Keyframe specific settings, for example its Position value.
Using the DELETE key, you can remove the currently selected Keyframe.
Alternatively, while a Keyframe is selected, its connected Button turns red, and clicking it removes the Keyframe as well.
Note: If you use an Apple Computer with a built-in keyboard, you may need to press FN + DELETE instead.
Using the X key, you can open the Keyframe Repository. Every Replay File has a separate Keyframe Repository which can contain several Keyframe Presets.
To save the Keyframes currently on your Timeline, click the "Save current Path" button. You can change the Preset's name using the Text Input Field in the upper right corner.
To load a Keyframe Preset, select a Preset from the list on the left side and click the "Load" button.
Using the "Remove" button, you can permanently delete a Keyframe Preset from the Keyframe Repository.
Custom Objects are mainly meant for video creators. They allow you to add any image into the Replay World and animate its Position, Opacity and much more.
Instead of using Motion Tracking to add text or pictures to a video, you can directly add these to the rendered file.
In order to create Custom Objects, you first have to add Assets to your Replay File.
Therefore, open the Asset Manager using the G key.
In the Asset Manager, you can add Image Files (.png, .jpg and more), so-called Assets, to the Replay.
When clicking the "Add" button, a File Chooser will show up. Select the image file you want to use.
You can give the Asset a custom name using the Text Input Field in the top right corner.
All of the Assets you added can be used by Custom Objects.
Using the F key, you can open the Object Manager. Initially, there won't be any Objects in the Object List, but you can
simply add an Object using the "Add" button.
After doing so, you can name the newly created Custom Object using the Text Field in the upper right corner.
To define which Asset File (i.e. image) the Custom Object should use, select the desired Asset from the dropdown beneath the Name Input.
If you leave the Object Manager, you should see the image in the World somewhere near your position.
Of course, you don't want the image to stay at that position. Therefore, open the Object Manager again and select the Custom Object you want to modify.
On the lower half of the screen, you will see multiple Input Fields, using which you can modify various settings (so-called Transformations), for example the Object's
Position, Scale, Orientation and Opacity.
When editing these values, you'll notice that on the Timeline to the right, Keyframes appear. You can set and remove Keyframes for specific settings using its "Add Keyframe" button on the very left of the screen.
The Object Manager's Keyframe System is very similar to the Position Keyframe and Time Keyframe System.
During a Camera Path, the Custom Objects will interpolate their Transformation Values like Position Keyframes are interpolated.
While outside the Object Manager, you can preview the Objects' position by moving the cursor on the Keyframe Timeline - the Objects will
interpolate to the position they'll be at that timestamp during the Camera Path.
Once you got the hang of it, you'll be able to quickly animate Custom Objects.
With the Replay Mod, you can render Camera Paths to videos without using a screen recording tool like Fraps.
To get started, first set up your Camera Path as described in the previous chapters. Then, press the "Render Camera Path" button in the upper left corner.
The Replay Mod does not only allow you to render "normal" videos as you see them on YouTube everyday, you can also render 360 degree videos,
3D videos and more.
To change the rendering method, use the dropdown on the upper half of the Render Settings Screen.
Renders the video in the specified resolution. Fastest Rendering Option.
Renders the video as a stereoscopic (side-by-side) 3D movie, usable by different 3D technologies. The image for one eye is half the width of the video.
Renders the video with a 360 degree panoramic view, using Cubic Projection.
This is usable by several 360 degree video players (and the Oculus Rift), for example VR Player.
While Cubic Videos can't be used for YouTube 360° Videos, it takes less time to render them, so if your player is compatible with Cubic Projection anyway, you can use this setting.
Renders the video with a 360 degree panoramic view, using Equirectangular Projection. This is usable by YouTube's new 360 degree video function, and several video players (and the Oculus Rift), for example VR Player.
Note: In order for YouTube to recognize 360 Degree Videos, you have to inject some Metadata. Follow this guide for a tutorial.
After you chose the Rendering Mode you want to use, you can further customize the rendered video.
Below the Render Method Dropdown, you can enter the desired Video Resolution (Width*Height). You can enter any resolution there, but make sure to use reasonable values.
Common Video Resolutions for Default Rendering are:
When using Stereoscopic Rendering, please note that the entered Width value is the final video's width.
Because Stereoscopic Videos have two frames next to each other, you therefore need to double the video width, so if you want a Full HD Stereoscopic Video, you have to enter 3840*1080.
Videos in Equirectangular Projection always need to have an Aspect Ratio of 2:1.
Please note that you should generally use a high resolution when exporting Equirectangular Videos, as the Video will be mapped onto a spherical surface in the Viewer you're using. To get a decent looking video, I recommend a resolution of 4320*2160.
Note: If you're re-rendering Equirectangular footage (e.g. using a video editing software like Premiere), make sure to export it at a 2:1 aspect ratio - otherwise it will look strange in 360 degrees.
Below the Render Method Dropdown, there is another Dropdown Menu for Encoding Presets.
Note: If you simply want to render an MP4 video in good quality, don't change these settings.
There are 7 Encoding Presets you can choose from:
Renders an MP4 video encoded with the x264 codec in Default Quality. This is default Encoding Preset, as it exports a video with good quality and a relatively low file size.
Renders an MP4 video encoded with the x264 codec in High Quality. Rendered videos have a relatively high file size, but their quality is almost lossless. This is useful for video producers who have to encode (render) their footage several times.
Renders an MP4 video encoded with the x264 codec in Very Low Quality. While the video itself looks really bad, the file size is tiny and therefore this preset can be used for test renders.
If this Preset is chosen, the Bitrate Input Field gets enabled and you can define the video's bitrate yourself. The rendered video is an MP4 video encoded with the x264 codec.
If this Preset is chosen, the Bitrate Input Field gets enabled and you can define the video's bitrate yourself. The rendered video is a webm video encoded with the vp8 codec.
webm video files are useful if you want to upload footage directly to streaming services like YouTube, as they usually don't have to convert vp8-encoded videos when processing them.
Renders an MKV video encoded with the x264 codec in Lossless Quality. While these video files are of perfect quality, most non-FFmpeg-based video players and video editing software (e.g. QuickTime Player, Sony Vegas and Adobe Premiere) can't play these videos. Therefore, you should instead use the MP4 - High Quality preset in most cases.
Exports the sequence as individual frames in the PNG Format.
Note: This can create a huge amount of files, so make sure to save them in a separate folder.
By clicking the "Advanced Settings" Button in the lower right corner, you can access more settings.
If you don't want to see Entity's Nametags in the rendered video, simply tick the checkbox. Hidden Nametags also include Nametags of Armor Stands and Mobs, not only Players!
This setting is only applicable for Cubic Rendering and Equirectangular Rendering.
Because you can rotate the camera in 360 degree viewers, a tilted camera perspective leads to a strange user experience: If the user looks around, his view might appear to be tilted because the camera looked up or down.
Therefore, I recommend to always stabilize the camera's Pitch and Roll using the respective checkboxes.
Example 360° video without stabilized Camera Pitch
Example 360° video with stabilized Camera Pitch and Roll
This is an experimental setting for video producers which allows you to change the sky color to a fixed color.
Using a Video Editing Software like Adobe After Effects or Sony Vegas, you can change the sky color to transparency and add your own footage as sky.
Read more about Chroma Keying here.
Note: For best results, you should disable clouds before rendering, as they are transparent.
Note: This is for advanced users only. If you do not know what you're doing, leave these settings as they are.
The Replay Mod runs FFmpeg via the Command Line to encode videos.
You can customize both the executed Command and the Command Line Arguments in the Command Line Settings Tab of the Render Settings Screen.
If you leave the left input field blank, ffmpeg
will be used as command. If you haven't set your PATH variable to link to your FFmpeg distribution, simply enter the full path to your FFmpeg executable
(e.g. C:/ffmpeg/ffmpeg.exe
or /usr/local/bin/ffmpeg
).
In the right input field, you can input custom Command Line Arguments to be used in the console.
Each of the Encoding Presets basically represents a set of Command Line Arguments
which are used with the ffmpeg Command. Customizing these Command Line Arguments allows you to use a specific codec or quality setting and much more.
If you need an introduction to ffmpeg Command Line Arguments, read the FFmpeg documentation.
Before passing the given Command Line Arguments to the ffmpeg Command, the Replay Mod replaces the following placeholders with your inputs in the Render Settings Screen:
The video's width
The video's height
The video's framerate
The video's filename without the extension. This should be surrounded with quotation marks "
, as the filename might contain spaces.
As the ffmpeg Command is always executed from the target file's parent directory, %FILENAME% does not contain the file's full path.
The video's bitrate in kilobytes per second. As the %BITRATE% placeholder already contains the value identifier "K", you don't have to take care of the bitrate value's format.
By clicking the Render Button in the lower right corner, you start Default Performance Rendering. Usually, this is perfectly satisfying regarding rendering speed, but you can increase it slightly using High Performance Rendering.
To use High Performance Rendering, hold down the Ctrl key (Cmd key on Mac) while clicking the Render Button.
High Performance Rendering has the following changes to improve rendering speed:
If you have trouble with rendering, please first consult the Documentation before asking for help in the Forums.
If the Replay Mod tells you to install FFmpeg even though you already have, you have to manually tell the Replay Mod where your FFmpeg executable is located.
First, get the full path to your ffmpeg.exe
(on Windows) or ffmpeg
executable (on Mac/Linux).
On Windows, this path might look like C:/ffmpeg/ffmpeg.exe
.
Then, open the "Command Line Settings" Tab in the Render Settings and paste this path into the left input field and retry rendering.
If Minecraft crashes after a few frames of rendering, it most likely means that FFmpeg didn't like the Command Line Arguments you passed.
If you customized the Command Line Arguments manually, re-check them - it's probably your own fault.
Hint: In your .minecraft folder, you'll find a file called export.log
which contains information about FFmpeg's rendering process.
If you did not customize the Command Line Arguments, you might have entered some insanely high (or low) values e.g. for Bitrate or Video Resolution. Try again with other, more reasonable values.
If you have a Replay in a dark setting (for example at nighttime, or in a cave), and Brightness: Bright just isn't bright enough for you,
you can toggle Ambient Lighting using the Z key (Y on some keyboards).
This works as a replacement for the Night Vision Potion Effect, without the side effect of a weird sky color.
Using the B key, you can open the Player Overview. In the Player Overview, you see a list of all currently loaded Players in the Replay.
By clicking on a player's Name or Head, you can spectate this player.
Next to each player, there's a checkbox using which you can toggle the player's visibility. This way, you can hide certain players from the Replay.
Above the individual checkboxes, there are two checkbox buttons - one to hide all players and one to show all players.
If you want to save the player visibility settings, check the "Remember Hidden Players" checkbox. If checked, invisible players will stay invisible after closing the Replay (this can of course be reverted), otherwise all of the players are visible again after reloading the Replay.
While in a Replay, you can use the N key to create a Thumbnail of the current Replay.
A Thumbnail is a Screenshot which should give the viewer a good impression of your Replay's content.
Thumbnails are important when uploading a Replay to the Replay Center, as other users are much more likely to download your Replay if they can see a preview of it.
They also help keeping your Replay Viewer clear and structured.
If no Thumbnail is set for a Replay, the Default Thumbnail will be displayed in the Replay Viewer and in the Replay Center.
Long Replays easily get really clunky and difficult to handle. Therefore, Event Markers are a simple way to mark important events in your Replay.
While recording a Replay, you can press the M key anytime to set an Event Marker. This Event Marker remembers the Position where you've added it and will later, while watching a Replay, be displayed on the Replay Timeline.
While viewing a Replay, you can jump to an Event Marker's Position and Timestamp by right-clicking it on the Replay Timeline.
You can also add new Marker Keyframes while viewing a Replay using the M key as well.
You can name Event Markers by double-clicking them. When hovering over the Event Marker, its name is displayed. This way, it's even simpler to add structure to your Replays.
You can delete an Event Marker by clicking it once to select it and then pressing the DELETE key.
The Replay Center is where you can share your Minecraft Moments with others and discover awesome Replays by other Users.
To be able to use the Replay Center, you need an account on ReplayMod.com.
When starting Minecraft with the Replay Mod installed, you will be asked to login to ReplayMod.com.
If you don't want to use the Replay Center, you can click the "Skip" Button to continue without logging in.
If you want to browse other users' Replays and share your own Replays however, you need to Register an account.
Note: By registering an Account on ReplayMod.com, you agree to the Website's Terms of Service.
Please note that you can only create only one ReplayMod.com Account per Minecraft Account, so choose your username wisely.
Once you've registered, you're automatically going to be logged in. The Mod remembers your login until you manually log out from the Replay Center, so it won't ask you upon every startup if you logged in once.
Once you've logged in, you can use the "Replay Center" Button in the Main Menu to access the Replay Center.
In the upper half of the screen, there are 6 Buttons for 6 Tabs of the Replay Center:
When you've found an interesting looking Replay, you can download it using the "Download" Button in the lower left corner. After downloading, you'll automatically join the Replay.
After you've downloaded a Replay, you can rate and favorite it in the Replay Center using the respective buttons.
You are encouraged to rate Replays after you downloaded them to help promoting the best Replays.
You can share your own Replay Files with other users in the Replay Center. Therefore, click the "Upload" Button in the Replay Viewer after selecting a Replay.
In the Replay Upload Screen there are 6 input fields:
The Replay's Name in the Replay Center
A description of what happens in the Replay. Try to give the user a good impression why your Replay is worth downloading.
The Replay's Category, one of the following: Survival, Build, Minigame, Miscellaneous. If none of the other categories fit, use Miscellaneous.
One or more tags that fit your replay, separated by comma. Example tags: pvp,battle,redstone,creative
If you've recorded a Replay on a private Server, you can remove the Server IP by checking the respective checkbox.
While you can't directly edit the Thumbnail when uploading, it is highly recommended that you create a Thumbnail before sharing your Replay. Replays without a Thumbnail are much less likely to be downloaded by other users.
When uploading a Replay File, make sure to follow the Replay Center Rules.
You only need a ReplayMod.com Account to access the Replay Center. All of the other features are also available offline.
Theoretically, a Replay File can be up to 24 days, 20 hours, 30 minutes and 23 seconds long - which is a timespan you'll probably never reach.
If you're playing in Singleplayer, all of the loaded chunks within your Render Distance are recorded.
If you're on a server, this depends on the view-distance setting in the server.properties file, which is set to 11 Chunks by default.
The Replay Mod of course records every loaded, not only the rendered chunks. Therefore, chunks behind your back are recorded as well.
Due to the way the Replay Mod works, you need to start recording when joining a Server or World - otherwise some data which the Replay Files need is missing.
Usually, recording a Replay does not affect your framerate, and it also doesn't lead to lag on servers.
We've tested the Mod on a low-end notebook with only 3GB of ram, and everything worked fine.
The file size of the recorded .mcpr files greatly depends on the amount of world data the replay contains.
A Replay in which you travelled around and discovered a lot of terrain is significantly larger than a Replay which was recorded in a void world.
An average Replay File of 10 Minutes duration usually is between 2MB and 10MB large. Replays recorded on Minigame Servers with lots of particle effects and world changes might be larger.
